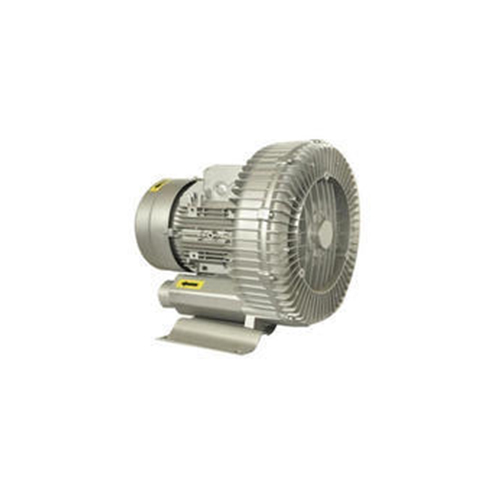

Turbine Blowers
Turbine blowers are light, easy to install and operate at high rpm. However they are useful only in shallow water depths, at most upto 1 mtr. And the ratio of blower HP to AirOxi tube is also reduced. But their light construction and ease of installation makes them ideal for hatcheries and small ponds.
Click here to view the technical data sheet    https://www.airoxi.com/files/catalog/download_brochure/technical/Airoxi_Turbine_Blower_Technical_data_sheet.pdf

Technical Data Sheet for AirOxiTM Turbine Blowers

  • Model – AOTBL – 0.5 HP – Single Stage

Technical Data Sheet for AirOxiTM Turbine Blowers

  • Model – AOTBL – 0.5 HP – Single Stage

MODEL

  AOTBL – 0.5 HP - single stage

CONSTRUCTION

Cast Aluminum

COOLING

AIR COOLED

FLOW

HORIZONTAL

DISPLACEMENT

80 M3/  HR

PRESSURE

140 mbar / 0.14 Kg/cm2

BLOWER RPM

2800 rpm

MOTOR. Option of single or 3 phase

0.5 HP / 2800 RPM

Weight

12 Kg

  • Model – AOTBL – 1.0 HP  Single Stage

MODEL

AOTBL – 1.0 HP - single stage

CONSTRUCTION

Cast Aluminum

COOLING

AIR COOLED

FLOW

HORIZONTAL

DISPLACEMENT

145 M3/  HR

PRESSURE

140 mbar / 0.14 Kg/cm2

BLOWER RPM

2800 rpm

MOTOR. Option of single or 3 phase

1.0 HP / 2800 RPM

Weight

15 Kg

  • Model – AOTBL – 1.5 HP – Single Stage

MODEL

AOTBL – 1.0 HP – single stage

CONSTRUCTION

Cast Aluminum

COOLING

AIR COOLED

FLOW

HORIZONTAL

DISPLACEMENT

210 M3/  HR

PRESSURE

170 mbar / 0.17 Kg/ cm2

BLOWER RPM

2800 rpm

MOTOR. Option of single or 3 phase

1.5 HP / 2800 RPM

Weight

19 Kg

  • Model – AOTBL – 1.0 HP – Double Stage

MODEL

  AOTBL – 1.0 HP Two Stage

CONSTRUCTION

Cast Aluminum

COOLING

AIR COOLED

FLOW

HORIZONTAL

DISPLACEMENT

88 M3/  HR

PRESSURE

240 mbar / 0.24 Kg/cm2

BLOWER RPM

2800 rpm

MOTOR. Option of single or 3 phase

1.0 HP / 2800 RPM

Weight

19 Kg

  • Model – AOTBL – 2.0 HP  Double Stage

MODEL

AOTBL – 2.0 HP – Two stage

CONSTRUCTION

Cast Aluminum

COOLING

AIR COOLED

FLOW

HORIZONTAL

DISPLACEMENT

150 M3/  HR

PRESSURE

280 mbar / 0.28 Kg/cm2

BLOWER RPM

2800 rpm

MOTOR. Option of single or 3 phase

2.0 HP / 2800 RPM

Weight

26 Kg

  • Model – AOTBL – 3.0 HP – Double Stage

MODEL

AOTBL – 3.0 HP – Two stage

CONSTRUCTION

Cast Aluminum

COOLING

AIR COOLED

FLOW

HORIZONTAL

DISPLACEMENT

160 M3/  HR

PRESSURE

280 mbar / 0.28 Kg/ cm2

BLOWER RPM

2800 rpm

MOTOR. Option of single or 3 phase

3.0 HP / 2800 RPM

Weight

35 Kg


   OPTIONAL ACCESSORIES

Non Return Valve

5 mtr wire connected to the motor

   TERMS & CONDITIONS

Price

Ex-our works unpacked

Taxes

18% GST Applicable extra

Packing

2% Extra

Freight

To pay basis

Delivery

Within 1 week after receipt of your Techno-commercially

Clear PO order.

Payment

100 % advance

Validity

30 days

Insurance

Your scope, however can be arranged at extra cost @1%


Warranty:-  12 months from the date of dispatch against any manufacturing defects, faulty workmanship, defective material. However, this warranty is not applicable in case of normal wear and tear or due to hazardous materials, environment or due to any other cause which is beyond our controls.

Correct wiring of the motor is the customer’s responsibility. Output wires from the motor will be provided upon request. However correct wiring to the plug is the customers’ responsibility. The motor is not covered under warranty for improper wiring. Or for input power issues like voltage fluctuation or phase related issues, or generator issue, etc.

www.airoxitube.com

  • Model – AOTBL – 1.0 HP  Single Stage

MODEL

AOTBL – 1.0 HP - single stage

CONSTRUCTION

Cast Aluminum

COOLING

AIR COOLED

FLOW

HORIZONTAL

DISPLACEMENT

145 M3/  HR

PRESSURE

140 mbar / 0.14 Kg/cm2

BLOWER RPM

2800 rpm

MOTOR. Option of single or 3 phase

1.0 HP / 2800 RPM

Weight

15 Kg

  • Model – AOTBL – 1.5 HP – Single Stage

MODEL

AOTBL – 1.0 HP – single stage

CONSTRUCTION

Cast Aluminum

COOLING

AIR COOLED

FLOW

HORIZONTAL

DISPLACEMENT

210 M3/  HR

PRESSURE

170 mbar / 0.17 Kg/ cm2

BLOWER RPM

2800 rpm

MOTOR. Option of single or 3 phase

1.5 HP / 2800 RPM

Weight

19 Kg

  • Model – AOTBL – 1.0 HP – Double Stage

MODEL

  AOTBL – 1.0 HP Two Stage

CONSTRUCTION

Cast Aluminum

COOLING

AIR COOLED

FLOW

HORIZONTAL

DISPLACEMENT

88 M3/  HR

PRESSURE

240 mbar / 0.24 Kg/cm2

BLOWER RPM

2800 rpm

MOTOR. Option of single or 3 phase

1.0 HP / 2800 RPM

Weight

19 Kg

  • Model – AOTBL – 2.0 HP  Double Stage

MODEL

AOTBL – 2.0 HP – Two stage

CONSTRUCTION

Cast Aluminum

COOLING

AIR COOLED
Warrantee :- 12 months from the date of dispatch against any manufacturing defects, faulty workmanship, defective material. However, this warranty is not applicable in case of normal wear and tear or due to hazardous materials, environment or due to any other cause which is beyond our controls.
Correct wiring of the motor is the customer’s responsibility. Output wires from the motor will be provided upon request. However correct wiring to the plug is the customers’ responsibility. The motor is not covered under warranty for improper wiring. Or for input power issues like voltage fluctuation or phase related issues, or generator issue, etc.
Usage instructions for better results
  • Since the pipe already has holes, there is no burst pressure that can be calculated, but for theoretical / test purposes we can consider burst pressure to be 4 to 8 Kg/ cm2 depending on the size used
  • Maximum recommended length of installation per tube – 25 feet Recommended distance between each tube in the pond – 10 to 20 feet when installed in long lines or rings and 4 inches when installed as grids
  • Quantity of pipe used depends on blower size. If you use less pipe then required for the blower, it will put load on the blower
